Fast GC Column/Fan Modules

Column-fan module for Fast GC

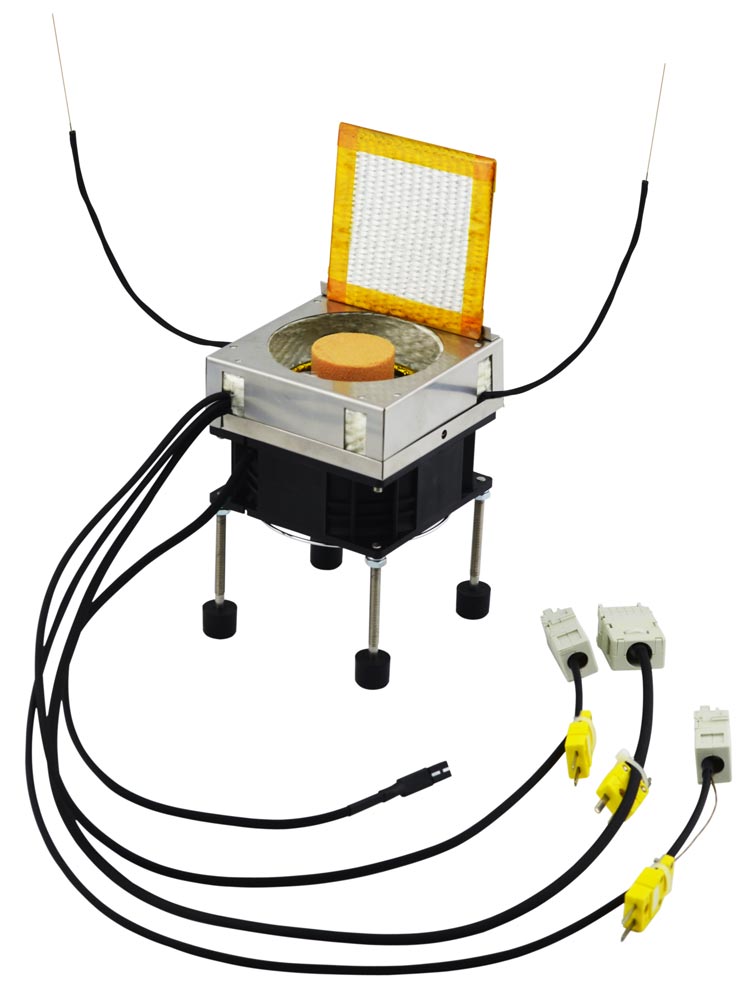

Column/fan module for Fast GC
close move
  • Wide selection of column types, sizes, and phases, configured for resistive heating
  • Resistively-heated transfer lines (with low mass 40 gauge K thermocouple) eliminate hot and cold spots
  • Column, fan, transfer lines, sensors, and connections in one unit
  • Choice of high-flow fans for fast cooling

Most discussions on fast GC columns focus on optimizing physical parameters such as length, ID, phase, film thickness, etc. Those factors are important, but the shortest run times cannot be achieved without the ramp rates attained by resistively heating the column.

Select a fused silica, metal, or packed column with any phase, in sizes from 1 m x 100 m to 30 m x 530 m. Transfer lines can be up to a meter long, and cooling fans are available in a variety of sizes and voltages. The finished module can be specified with a wall-mount bracket, or free-standing, with our without legs.

When you buy an FTP-200 and specify the components to be assembled into one of these modules, the FTP-200 and module leave the factory configured for plug-and-play implementation.

Shown below is a schematic of an example used to produce a one minute SimDis analysis. (View chromatogram)

MORE INFORMATION

Contact us for more information about our column/fan modules for fast, portable GC.
