SPEEK™ Tubing: SS-clad PEEK with Flared PEEK Ends

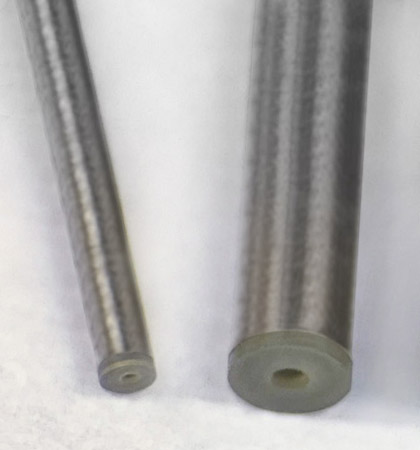

SPEEK™ stainless-clad PEEK tubing
SPEEK™ stainless-clad PEEK tubing
close move

Stainless-clad PEEK tubing offers the mechanical properties of stainless or nickel combined with the chemical properties of PEEK. The continuously-molded PEEK flanges at each end make this tubing ideal for applications where a non-metal flowpath is imperative. These include most LC/MS assays where acids and buffers may result in degradation of the exposed metals used to reinforce the PEEK tubing, or when delicate samples cannot tolerate exposure to metallic surfaces.

Select an OD below to view product numbers:

1/32"

1/16"

1/32" OD SPEEK™ tubing

Tubing ID Length Product No.
50 µm 100 mm TSPK800050-100MM
200 mm TSPK800050-200MM
300 mm TSPK800050-300MM
500 mm TSPK800050-500MM
75 µm 100 mm TSPK800075-100MM
200 mm TSPK800075-200MM
300 mm TSPK800075-300MM
500 mm TSPK800075-500MM
100 µm 100 mm TSPK800100-100MM
200 mm TSPK800100-200MM
300 mm TSPK800100-300MM
500 mm TSPK800100-500MM
125 µm 100 mm TSPK800125-100MM
200 mm TSPK800125-200MM
300 mm TSPK800125-300MM
500 mm TSPK800125-500MM
150 µm 100 mm TSPK800150-100MM
200 mm TSPK800150-200MM
300 mm TSPK800150-300MM
500 mm TSPK800150-500MM
180 µm 100 mm TSPK800180-100MM
200 mm TSPK800180-200MM
300 mm TSPK800180-300MM
500 mm TSPK800180-500MM
250 µm 100 mm TSPK800250-100MM
200 mm TSPK800250-200MM
300 mm TSPK800250-300MM
500 mm TSPK800250-500MM
Top top

1/16" OD SPEEK™ tubing

Tubing ID Length Product No.
50 µm 100 mm TSPK1600050-100MM
200 mm TSPK1600050-200MM
300 mm TSPK1600050-300MM
500 mm TSPK1600050-500MM
1000 mm TSPK1600050-1M
75 µm 100 mm TSPK1600075-100MM
200 mm TSPK1600075-200MM
300 mm TSPK1600075-300MM
500 mm TSPK1600075-500MM
1000 mm TSPK1600075-1M
100 µm 100 mm TSPK1600100-100MM
200 mm TSPK1600100-200MM
300 mm TSPK1600100-300MM
500 mm TSPK1600100-500MM
1000 mm TSPK1600100-1M
125 µm 100 mm TSPK1600125-100MM
200 mm TSPK1600125-200MM
300 mm TSPK1600125-300MM
500 mm TSPK1600125-500MM
1000 mm TSPK1600125-1M
150 µm 100 mm TSPK1600150-100MM
200 mm TSPK1600150-200MM
300 mm TSPK1600150-300MM
500 mm TSPK1600150-500MM
1000 mm TSPK1600150-1M
180 µm 100 mm TSPK1600180-100MM
200 mm TSPK1600180-200MM
300 mm TSPK1600180-300MM
500 mm TSPK1600180-500MM
1000 mm TSPK1600180-1M
250 µm 100 mm TSPK1600250-100MM
200 mm TSPK1600250-200MM
300 mm TSPK1600250-300MM
500 mm TSPK1600250-500MM
1000 mm TSPK1600250-1M
320 µm 100 mm TSPK1600320-100MM
200 mm TSPK1600320-200MM
300 mm TSPK1600320-300MM
500 mm TSPK1600320-500MM
1000 mm TSPK1600320-1M
380 µm 100 mm TSPK1600380-100MM
200 mm TSPK1600380-200MM
300 mm TSPK1600380-300MM
500 mm TSPK1600380-500MM
1000 mm TSPK1600380-1M
510 µm 100 mm TSPK1600510-100MM
200 mm TSPK1600510-200MM
300 mm TSPK1600510-300MM
500 mm TSPK1600510-500MM
1000 mm TSPK1600510-1M
Top top

MORE INFORMATION

  • SPEEK™ is a trademark of Valco Instruments Co. Inc.
  • PEEK® is a registered trademark of Victrex.
